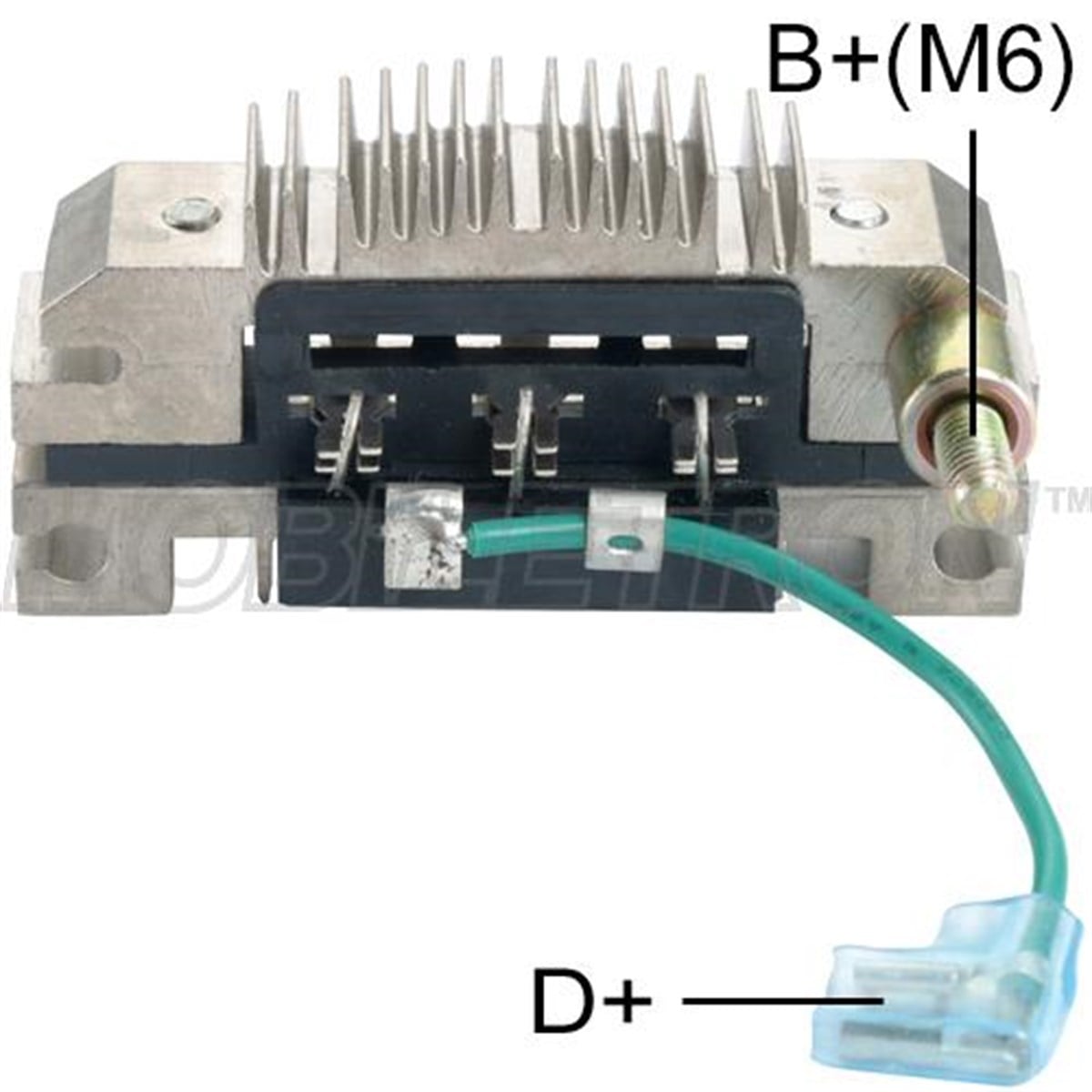

Specification
vo: Voltage 12/24 volt
od: Outside diameter 83 mm
dq: Number diodes 6 pcs
da: Diode amperage 50 amp
b+: Diameter B + M6
bl: Lenght B+ 12 mm
tq: Number of terminals 3 pcs
lf: Distance between mounting holes ( from center to center ) 68 mm
ct: Stator connection type
dd: Additional diodes yes
id: Inner diameter
dt: Diodes type standart Rectifier AEE0692Rectifier AEE0692Crosses
FIAT 64826011, 9940293, 9947325
KRAUF AEE0692AD
Magneti Marelli 63321503, 63621501, 64826011, 74877471, 74878691
Mobiletron RI02HA
Transpo IXR692
UTM EE0692A
Servicing63321006, 63321008, 63321041, 63321058, 63321060, 63321061, 63321067, 63321080, 63321103, ALE0129UXApplication
FIAT 132 2000 1977-1981 1995ccm 132 C/ FIAT Argenta 1600 132A 1981-1983 1585ccm 132D.000 / FIAT Argenta 2000 132A 1981-1983 1995ccm 132 C/D/ FIAT Croma I 1.6 154 1985-1987 1585ccm 154A0.048/ FIAT Croma I 2.0 154 1985-1987 1995ccm 154A1.000/ FIAT Ducato 10 1.9 D 280 1987-1994 1905ccm D9BDJY D9BXUD9A/ FIAT Ducato 10 1.9 TD 280 1990-1994 1929ccm 280A1.000/ FIAT Duna 1.7 D 146B 1986-1990 1697ccm 149B3.000/ FIAT Duna DS 1.7 D 146B 1986-1990 1697ccm 149B3.000/ FIAT Fiorino 1.7 D 146 1988-2001 1697ccm 146B2.000 146B3.000/ FIAT Regata 100 S 1.6 138 1983-1986 1585ccm 149C3.000/ FIAT Regata 60 1.7 D 138 1985-1989 1697ccm 149B3.000/ FIAT Regata 65 1.9 D 138 1984-1989 1929ccm 149A1.000/ FIAT Regata 90 1.6 138 1987-1989 1585ccm 149C2.000/ FIAT Ritmo 105 TC 1.6 138 1982-1985 1585ccm 138AR.000/ FIAT Ritmo 125 TC 138 1981-1988 1995ccm 138AR1.000 / FIAT Ritmo 55 1.7 D 138 1985-1987 1697ccm 138C.000 / FIAT Talento 1.9 D 290 1988-1994 1929ccm 149B1.000/ FIAT Tempra 1.9 D 159 1990-1996 1929ccm 160A7.000
Cargo 131391
DU 593054
ELMOT 316.600.0
FIAT 7541401, 7542145, 7548004, 7552382, 7553788, 7554832, 7554833, 9947725
Ghibaudi PRP111, PRP112
Ika 166281, 166291
KRAUF AEE0693AD
LUCAS 21222124, 21222125, UBB812, UBB813
Magneti Marelli 063621601002, 63621501, 63621503, 63621601, 74877471, 74878691, AMP1500, AMP1501, PRD4A, RDD16
Mobiletron RI02, RI02H, RI02HA
SJ JMM692, JMM693
Transpo IXR693
Unipoint REC352, REC353
UTM EE0693A, EE0693B
WPS 319304, 319305
